samir@astraformwork.comCertified for Quality, Strength & Safety

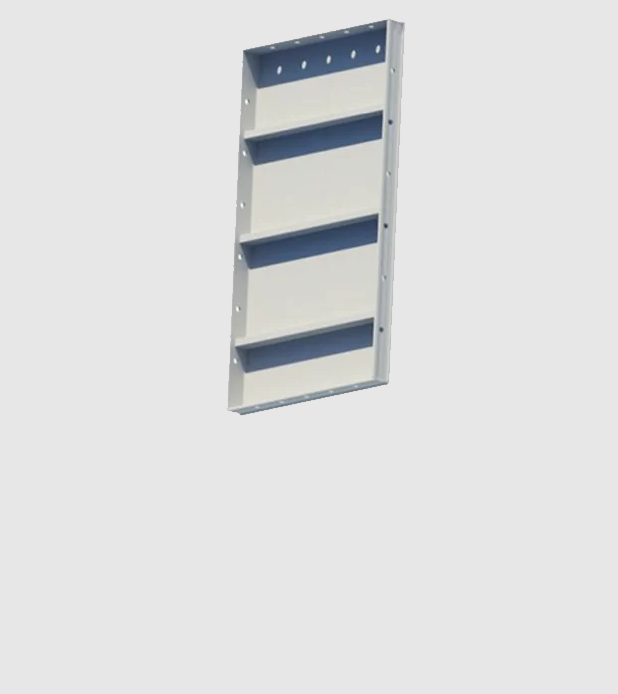

Deck Panel
SIZE - 600 X 1200 WEIGHT - 12.32 KG

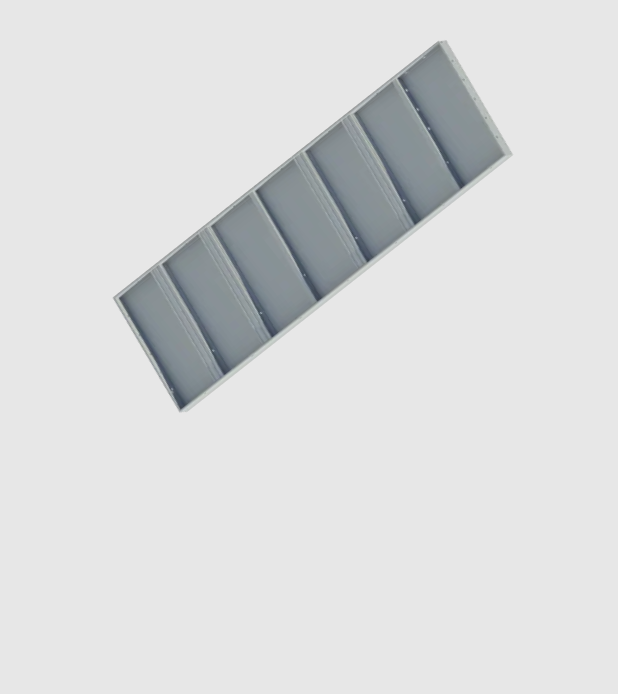

Wall Panel
SIZE - 600 X 2050 WEIGHT - 20.6 KG
01
Material Specifications
| Parameter | Specification |
|---|---|
| Base Material | Structural Aluminium Alloy (6000 Series / Equivalent) |
| Alloy Temper | T5 / T6 (As per structural requirement) |
| Face Sheet Thickness | 3 – 4 mm (Standard) |
| Frame Thickness | 6 – 8 mm (Typical profile thickness) |
| Rib / Stiffener Thickness | 4 – 6 mm |
| Fastening System | Pin & Wedge / Bolt System |
| Edge Profile | Extruded Aluminium Section |
02
Dimensional Specifications
| Parameter | Value |
|---|---|
| Standard Panel Width | 200 mm – 600 mm |
| Standard Panel Height | 300 mm – 3000 mm |
| Custom Sizes | As per approved drawings |
| Dimensional Tolerance | ±0.2 mm (CNC controlled) |
| Squareness Tolerance | ≤ 1 mm per meter |
